ACTUATOR

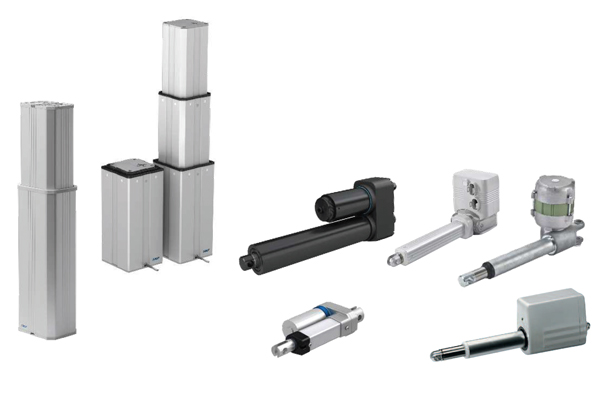

Linear
- 유지 보수가 거의 필요 없는 효율성, 비용절감 및 유.공압 형태의 대안적 친환경성.
- 가혹한 작동 조건에서도 견딜 수 있는 설계에 구조 와 온도, 충격 및 진동에 뛰어난 내구성.
- AC or DC 모터 구성 방식과 리드 or 볼 스크류등 다양한 선택적 구성.
- 안전율 4 기준의 data (일부 모델 제외)

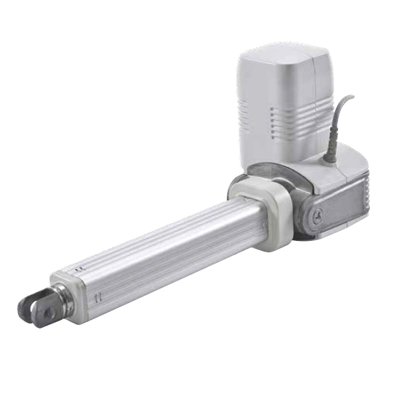

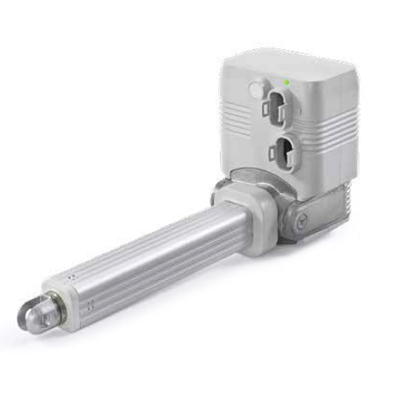

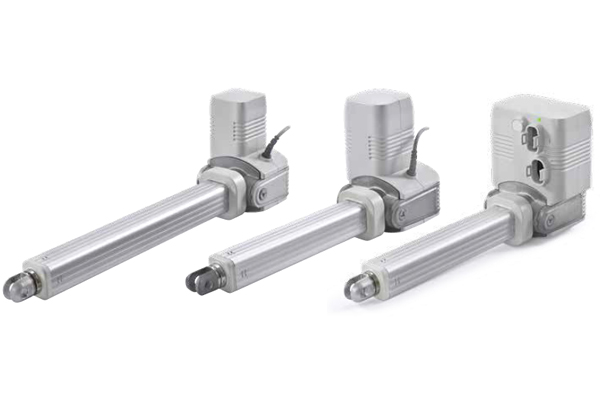

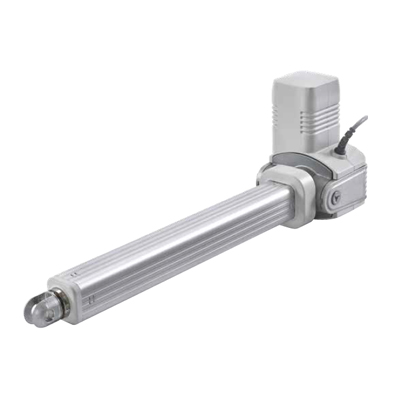

MATRIX

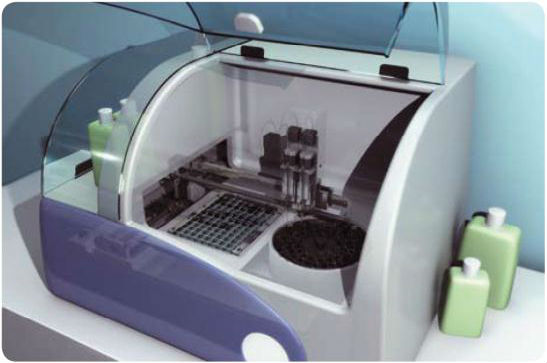

The Matrix series is designed for medical devices and includes powerful AC and DC linear actuators using DC motor. They run very quietly, take up little space and can be installed at virtually every angle in vertical or horizontal position. The series is medical approved by third parties and available with options like anti-pitching, incremental position feedback and emergency lowering. The Matrix series can be supplied as a full system with controls, operating units and accessories.
Features
- Designed for medical devices
- Full system with controls, operating units and accessories
- Back up nut as standard
- Safety factor up to 4
Benefits
- Synchronization possible
- Silent operation
- Compact and aesthetic
- Back-up nut as standard

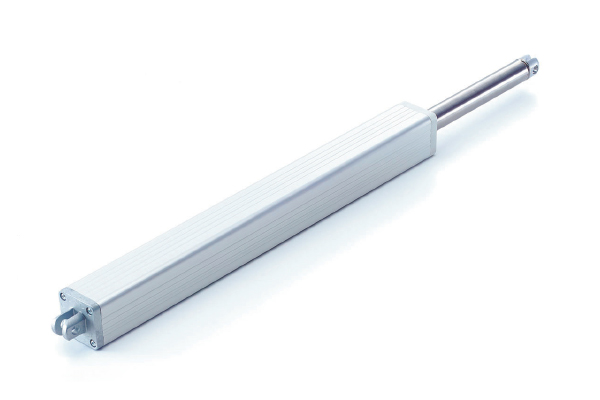

MAGDRIVE

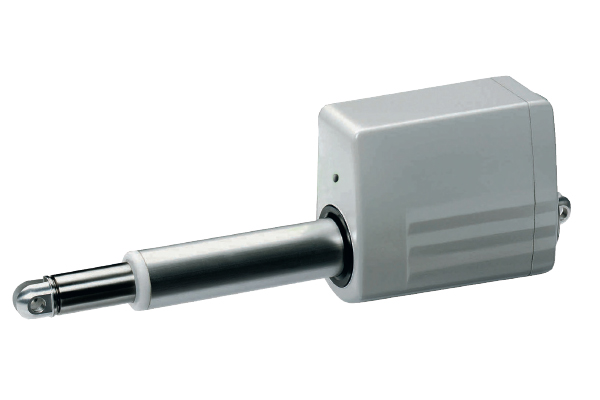

Runner
Features
- High push/pull load
- Silent operation
- High safety factor
- Back-up nut as standard
- Compact

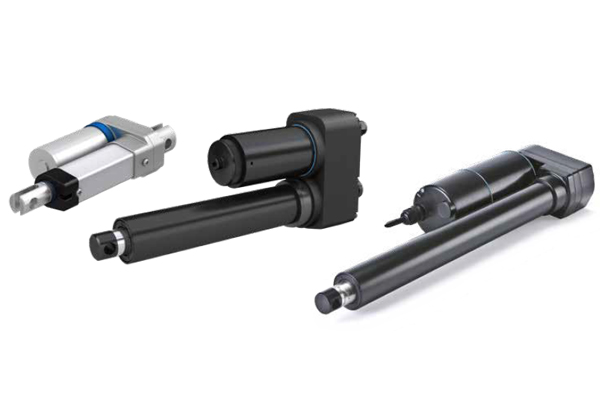

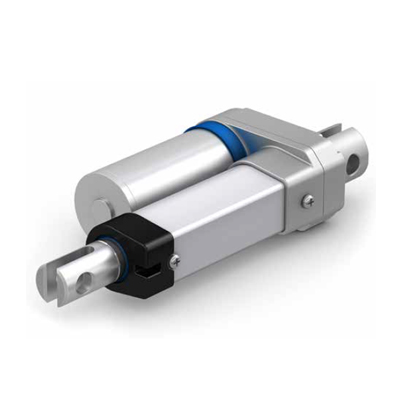

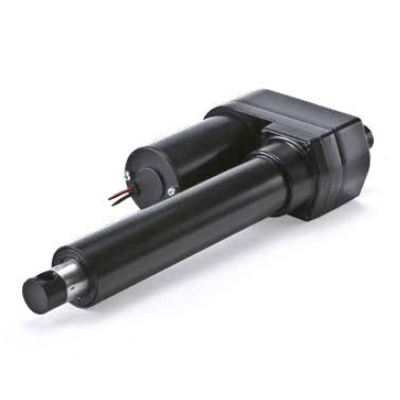

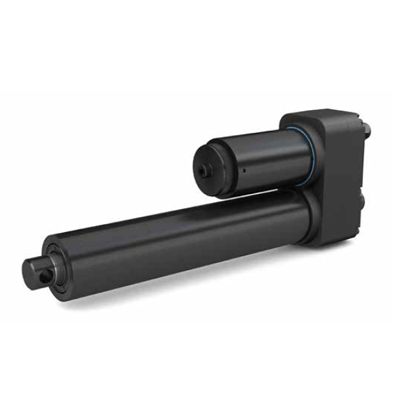

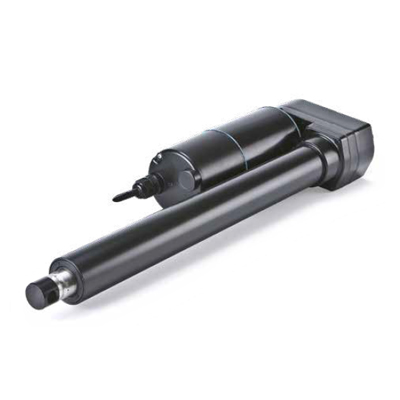

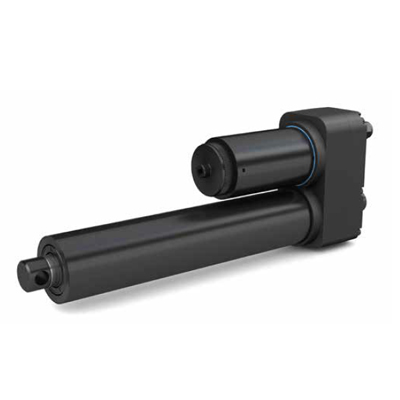

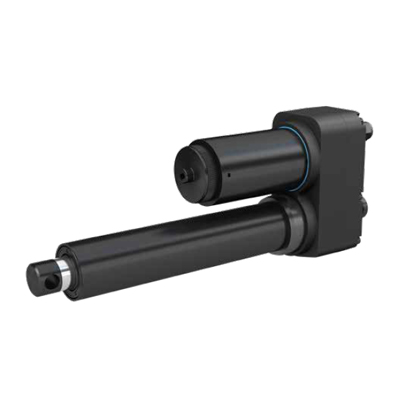

CAHB
Designed to operate in harsh environment with temperatures from –40 to 85 °C up to 25% duty cycle, SKF Motion Technologies electromechanical actuator CAHB family features robust metal gears and corrosion-resistant housings. Available in 7 series - CAHB- 20A/20E/21E/22E for medium and heavy load applications with an over load protection by clutch, CAHB-10, a compact solution for lowload applications and CAHB-30A/31N for AC version- SKF Motion Technologies electromechanical actuators, are virtually maintenance- free, self-locking up to 2 times the rated load and rated up to IP69K/66M. Additional design options are available like limit switches, positioning feedback and manual over ride.
Features
- High holding force up to 20 000 N
- Absolute or incremental Position feedbackand limit switches option
- Low basklash
- Manual override option
- Overload and thermal protection
- Ingress protection IP69K/66M with vent
- Stainless steel push tube and Corrosion protected metal parts
- Wide temperature range (–40 to 85 °C)
- Mechanical, electrical and climatic tests
- High efficiency
- Virtually maintenance-free
Benefits
- High productivity and usability of the adjustment
- Reliability and safety
- Save development time and shorten the time to market
- Cost effectiveness
- Durable

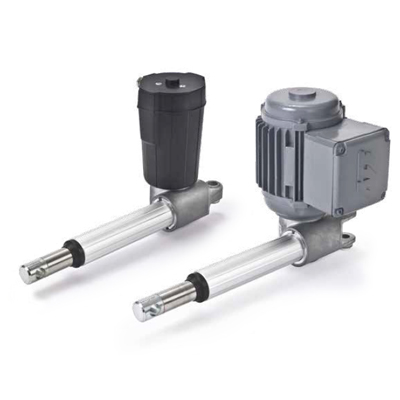

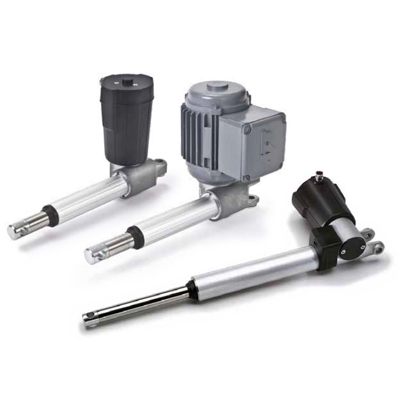

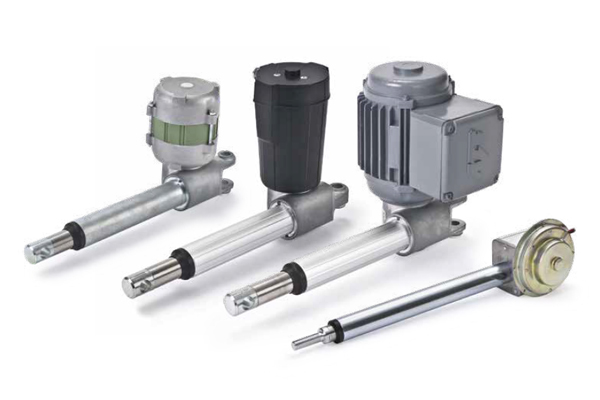

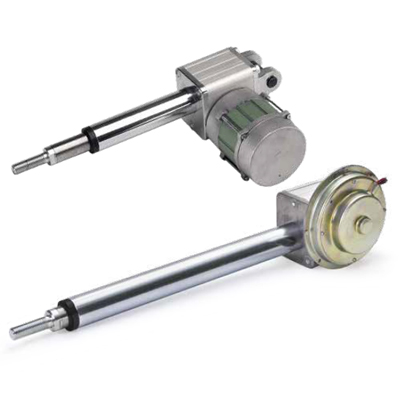

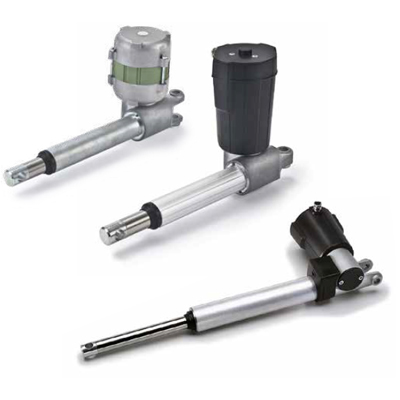

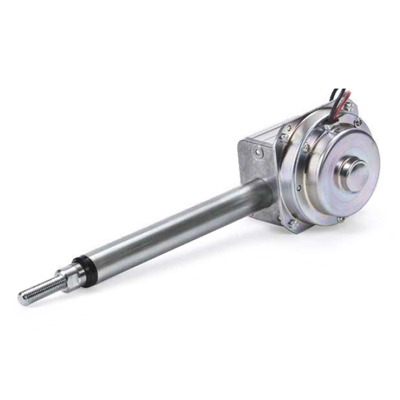

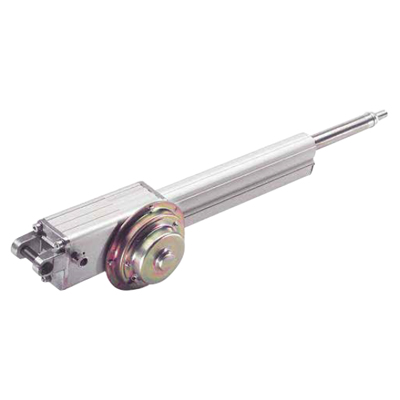

CAR, CAP & CAT
The CAR, CAP, CAT modular design concept makes it easy to interchange critical components such as motors, gears, screws, attachments, etc. Custom-built actuators are easily and cost efficiently built from standard parts. The CAT range flexibility makes it suitable for a high number of applications.
Features
- Compact
- Robust
- Modular
- Lubricated for service life
- High efficiency
Benefits
- Industrial reliable and robust actuator
- Wide range of components
- Right-hand and left-hand version
- Incremental or absolute position feedback option
Telescopic pillars

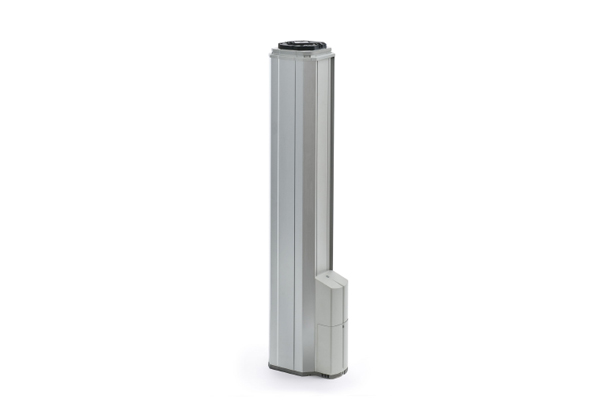

TFG
Features
- Push or pull load
- Plug and play
- Powerful
- Fast movement
- Compact design

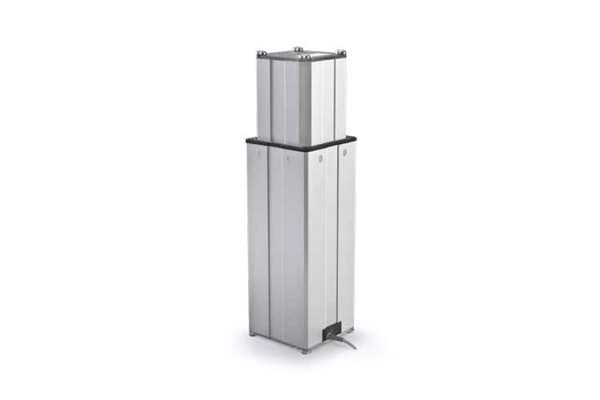

TLG

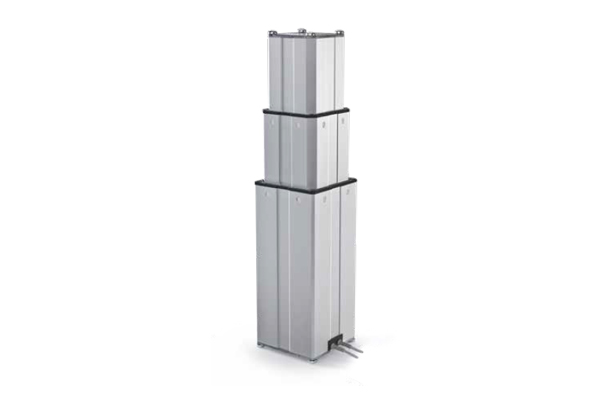

TLT

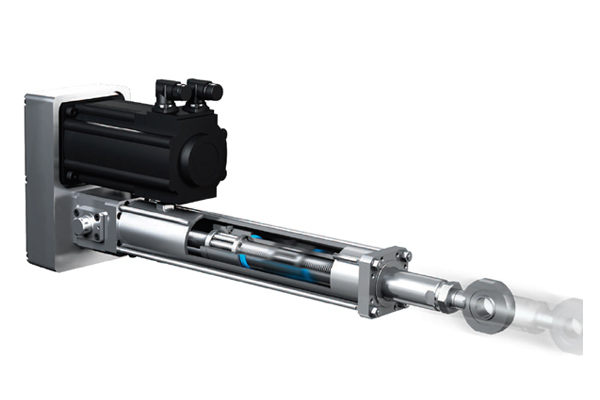

HPA

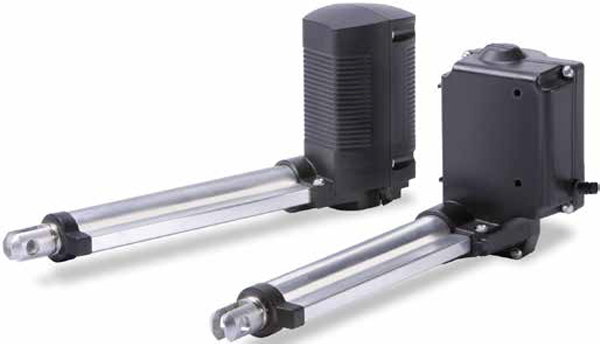

Ecomag

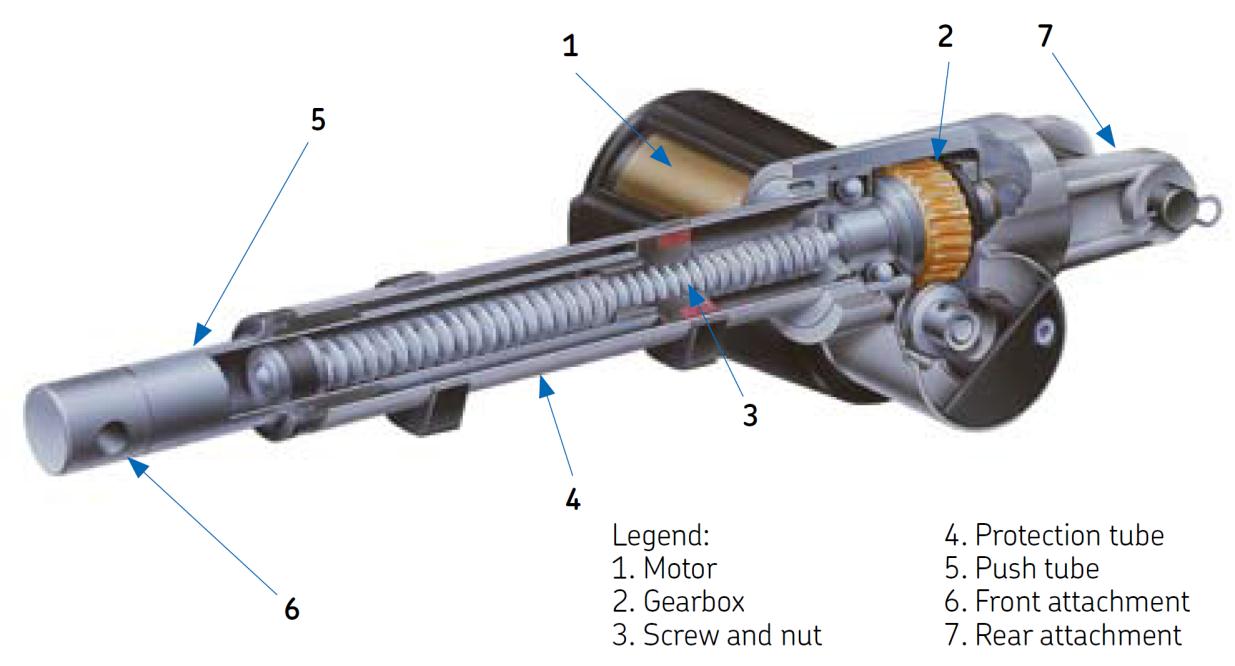

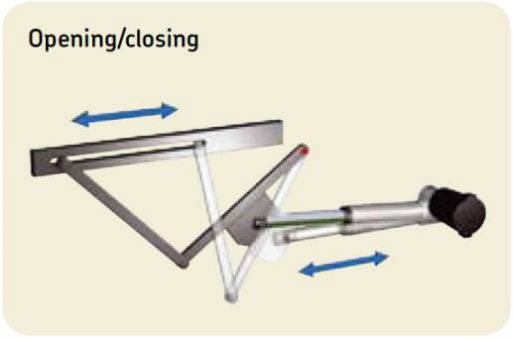

구조 및 구동 방식

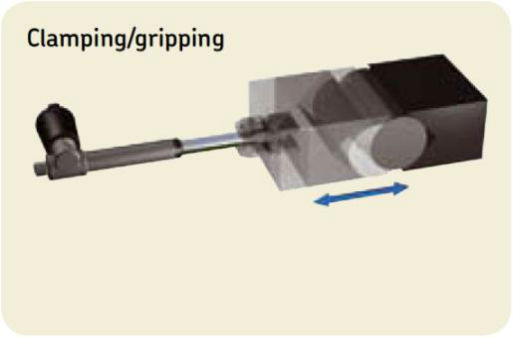

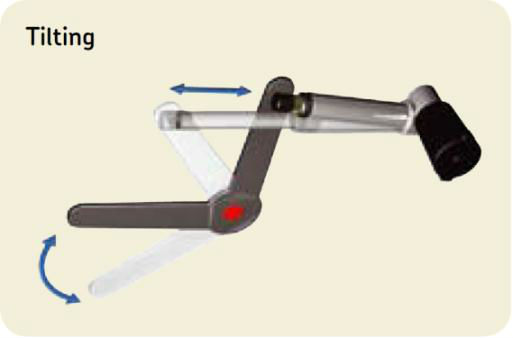

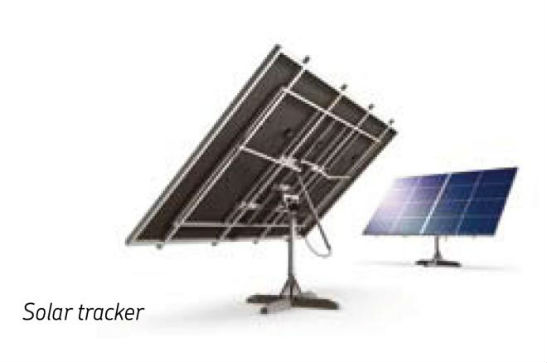

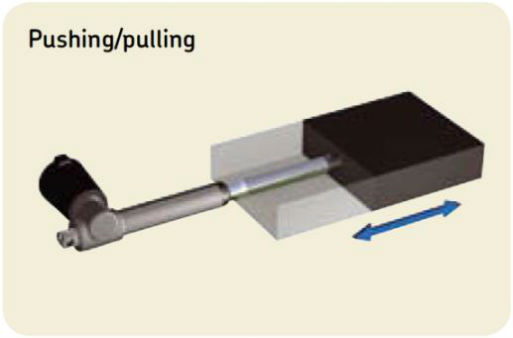

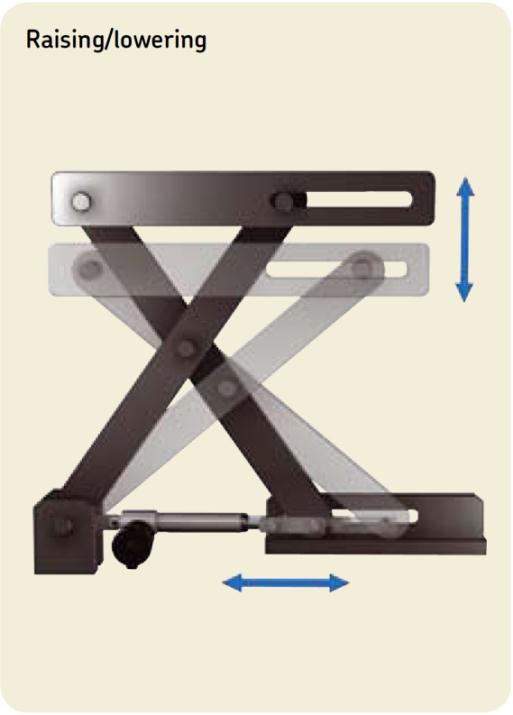

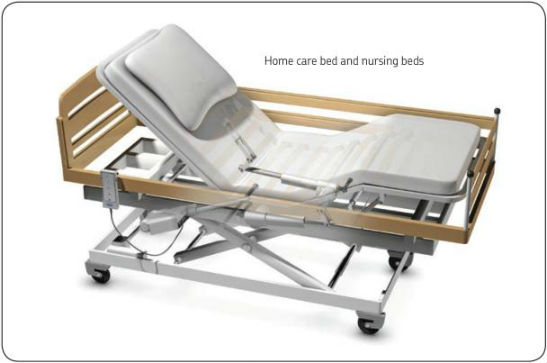

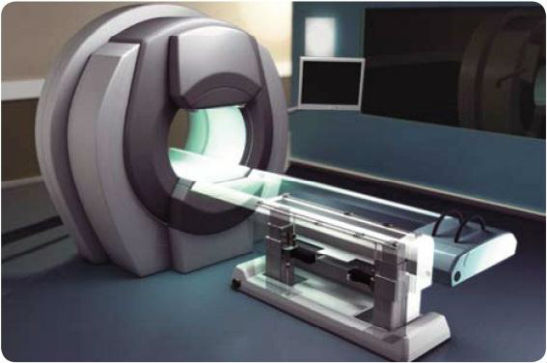

적용예
