LINEAR BALL BEARINGS
LINEAR BUSHING
Benefits:
- Designed for maximum flexibility and ease of use
- Units (single, tandem and quadruple) are available for practically every application
- Worldwide availability through Ewellix's distribution network
Features:
- Self-aligning +/- 30 arc minutes and standard designs
- Factory pre-lubricated, with or without double lip seals
- Raceway technology with polymeric cage

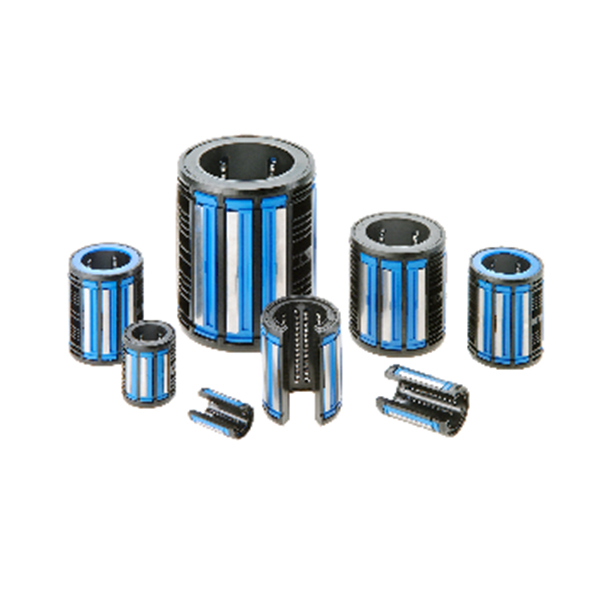

Linear ball bearings from Ewellix are available in compact series LBB (ISO series 1) and standard series LBC (ISO series 3). The bearings consist of a polymer cage with steel track segments to guide the rotating ball sets within the entire cage. The range is available with or without sealing, as a standard version, as an open version and in a corrosion-resistant version.
카달로그유형

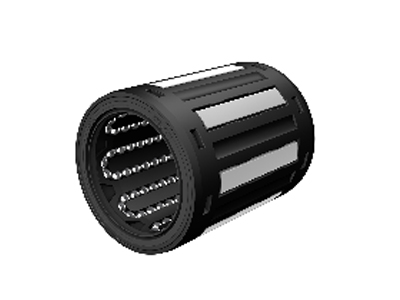

LBBR
Compact linear ball bearing(ISO series 1) available from 3 to 50 mm, easy to install with press fit in Ewellix units and optimised for exceptional cost performance

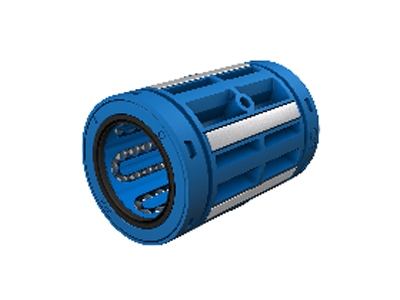

LBCD
Standard linear ball bearing(ISO series 3) available from 12 to 50 mm in self-aligning design. Optimised for low noise and smooth motion while tolerating slight misalignments and easy to instiall.

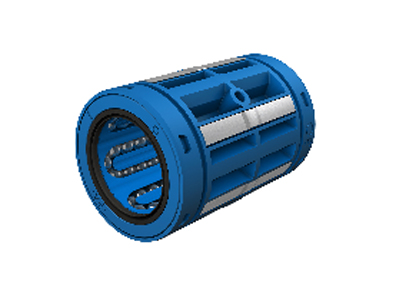

LBCR
Standard liner ball bearing(ISO series 3) available from 5 to 8mm. Covering all sizes for maximum application flexibility. Optimised for sturdiness and high performance while easy to install

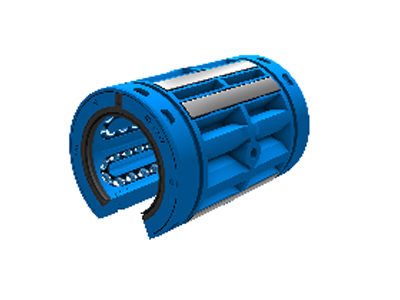

LBCF
Open linear ball bearing(ISO series 3) available from 12 to 50mm. Optimised for low noise and smooth motion while tolerating slight misalignments. Made for long distance strokes with supported shafts.

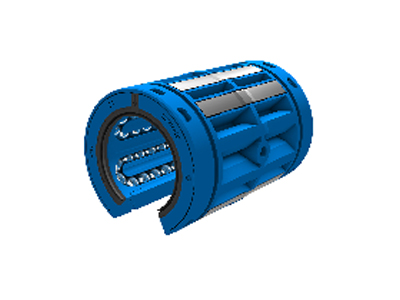

LBCT
Open linear ball bearing(ISO series 3) available from 12 to 80mm. Optimised for sturdiness and high performance while easy to install. Made for long distance strokes with supported shafts.

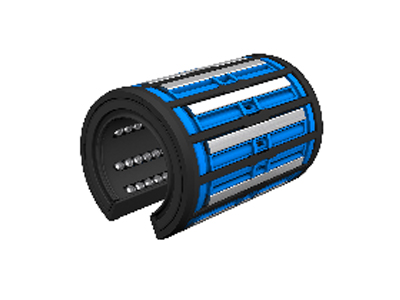

LBHT
Heavy duty open linear ball bearing design (ISO series 3) available from 12 to 50mm. Best size and performance ratio with maximum load ratings. Made for long distance strokes with supported shafts.
